Product Description

PCC panels, or Power Control Center panels, are integral to electrical distribution systems. They regulate and control power flow, ensuring efficient operation of machinery and equipment. Our PCC panels are engineered for reliability and safety, providing seamless power management solutions for industrial applications. PCC panels are designed to handle high-power loads and are equipped with multiple circuit breakers, switches, and other protective devices to regulate the flow of electricity and safeguard against overloads, short circuits, and other electrical faults.

We have specialization in manufacturing premium quality Power Control Center (PCC panel). It is efficiently used to distribute the power to the different parts of the Plant / Building / Industry / Township and controls the whole power supply from one single place. Our PCC Panels have created tremendous impact on our clients for their assured service with lesser maintenance. These complete set up are available for our clients in well customized form as per their requirement in competitive price range. Overall, PCC panels are essential components in industrial electrical systems, providing reliable power distribution, efficient control, and comprehensive monitoring capabilities to ensure the smooth and safe operation of industrial facilities.

Benefits

Efficient Distribution

Enhanced Protection

Centralized Control

Reliable Regulation

Comprehensive Safety

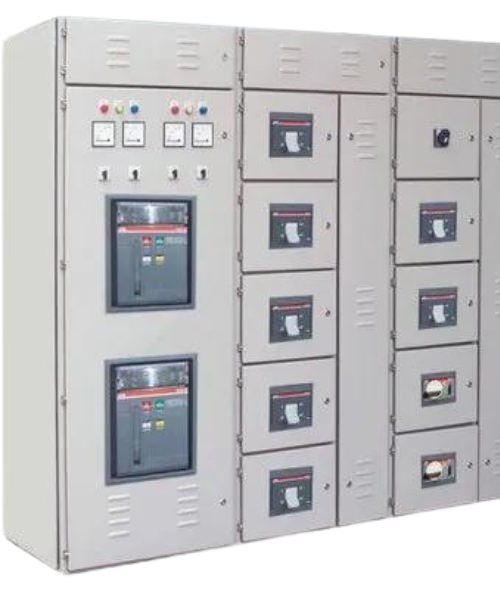

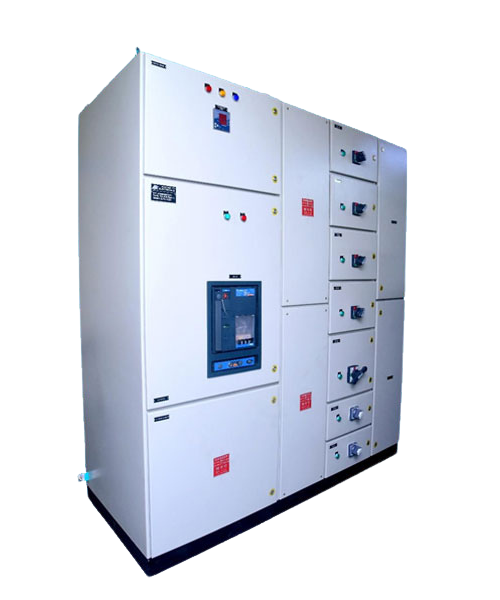

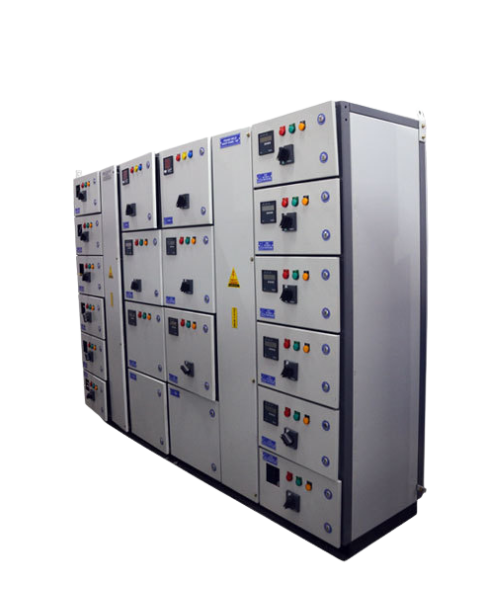

PCC Panel

Specifications

Rated Operational Voltage: Typically 415V AC, 50Hz.

Rated Current: Customizable based on application requirements.

Busbar Material: Copper or Aluminum as per design specifications.

Enclosure: IP rating, material (MS/SS), and dimensions per project needs.

Protection Devices: MCCBs, MCBs, SFUs, relays,& earth leakage protection.

Control Features: Mimic diagram, push-button controls, and PLC options.

Salient Features

Our PCC panels are made of fully RITTAL Enclosures

PCC Panels are fully modular Type

Enclosures are Dip Coated and Powder Coated 1.6/2mm CRCA Sheet Steel

For low-voltage switchgear with design verification to IEC/EN 61439-1 and -2.

Simple and friendly installation system assembly

Based on enclosure platform TS 8
